SKU: IFP8641

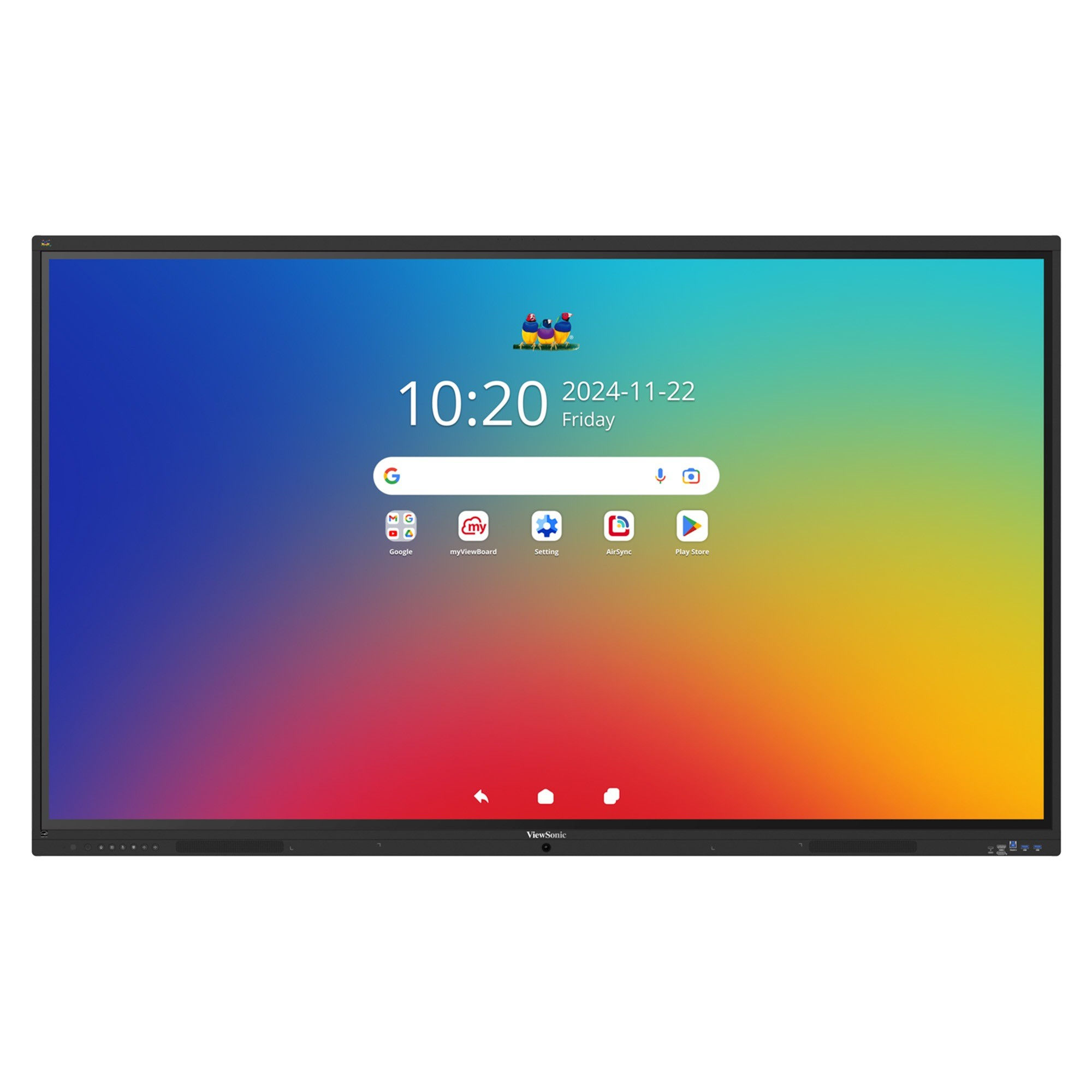

4K 16:9 Android EDLA ViewBoard interactive display
- OS: ViewBoard OS EDLA
- CPU: Rockchip RK3576
- Memory: 8GB LPDDR
- Storage: 128GB eMMC
- Microphone: Beamforming array x 8, full duplex echo cancellation
- Internal Speakers: 25W*2 + 20W = 70W
- HDMI 2.1 In: 3
- HDMI Out: 1
- VGA: 1
- DisplayPort: 1
- SPDIF: 1
- USB Type A: 5
- USB Type B: 3
- USB Type C: 100W x 1, 15W x 1
- RS232: 1
- Ethernet LAN (RJ45): 2
- Intel® OPS Slot In (80-pin): 1
- Line In: 1
- Mic-In: 1
- Voltage: 100-240 VAC
- Stand-by: <0.5W
- Physical Controls: 7 (Power, Home, Input source, Touch, Freeze, Volume+, Volume-)
- Temperature: 32-104º F (0 - 40º C)
- Non-Operating Temperature: -4°F to 140°F (-20C to 60C)
- Humidity (non-condensing): 20-80%
- Altitude: 0 - 3000m above sea level
- Tip Detection: Dual tips: 3mm and 10mm / Finger: 12-15mm / Palm: 30mm
- OS Support: Windows 7/ 8/10/11, MacOS 10.8 or later, Linux kenel 3.5 or later
- Other: Palm Rejection
- Latency: ≤5ms
- Touch Points: 64 points
- Touch Technology: IR Recognition
- Net (lbs): 128.31
- Gross (lbs): 160.72
- Net (kg): 58.2
- Gross (kg): 72.9
- Packaging (in.): 82.68x50.91x6.93
- Physical (in.): 77.04x46.08x3.44
- Packaging (mm): 2100x1293x176
- Physical (mm): 1956.7x1170.5x87.4
- VESA Compatible: 800 x 600 mm
- Warranty: 3-year limited warranty on parts, labor and backlight, onsite warranty
- Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
- Package Contents: IFP8641, Power Cord (3m), USB-C Cable (1.8m) Remote control with AAA battery, USB Touch Cable (3m), Stylus x 2 (a set), Quick Start Guide + Compliance statement, RS232 adapter, Clamp x 5, Camera Plate, Screw x 4, HDMI cable 3m, VB-WIFI-004 WiFi Adapter
- Regulations: CTUVus, FCC, Energy 8.0, EPEAT, CEC
- Ethernet LAN: 2 (10/100/1000 Mbps BaseT for Android and OPS)
- Wifi: VB-WIFI-004 adapter, 802.11AX + Bluetooth 5.0
- Bluetooth: Bluetooth 5.0
- Screen Size: 86"
- Backlight Life (Hours): 65,000
- Viewing Angles: 178º horizontal, 178º vertical
- Display Resolution: 3840 x 2160
- Response Time (Typical GTG): 8ms
- Aspect Ratio: 16:9
- Dynamic Contrast Ratio: 5,000:1
- Panel Surface: Anti-glare, 9H Pencil hardness / 3.2mm thickness
- Light Source: DLED
- Brightness: 400 cd/m2
- Static Contrast Ratio: 5,000:1
- Refresh Rate: 60Hz
